CR123A battery conversion for Polaroid 350 Land Camera

Here is perhaps one of the simplest and neatest battery conversions for the 3 volt Polaroid Land Cameras that you will see anywhere.

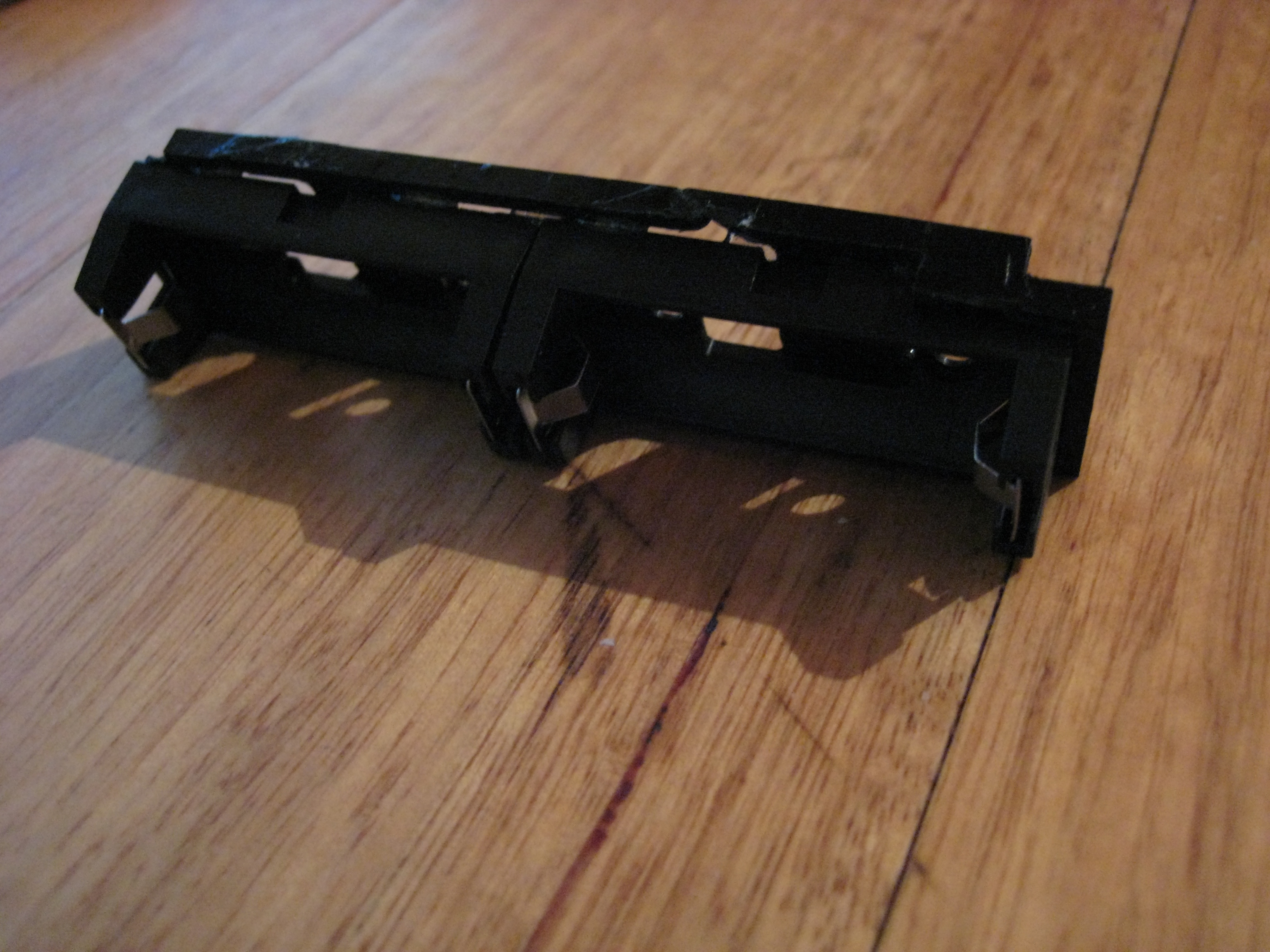

Here you can see where i have broken the old battery retaining clips of the original Polaroid battery holder in order to give me a plastic frame on which to mount my new CR123A battery holders.

5786711012_f25f688363_o

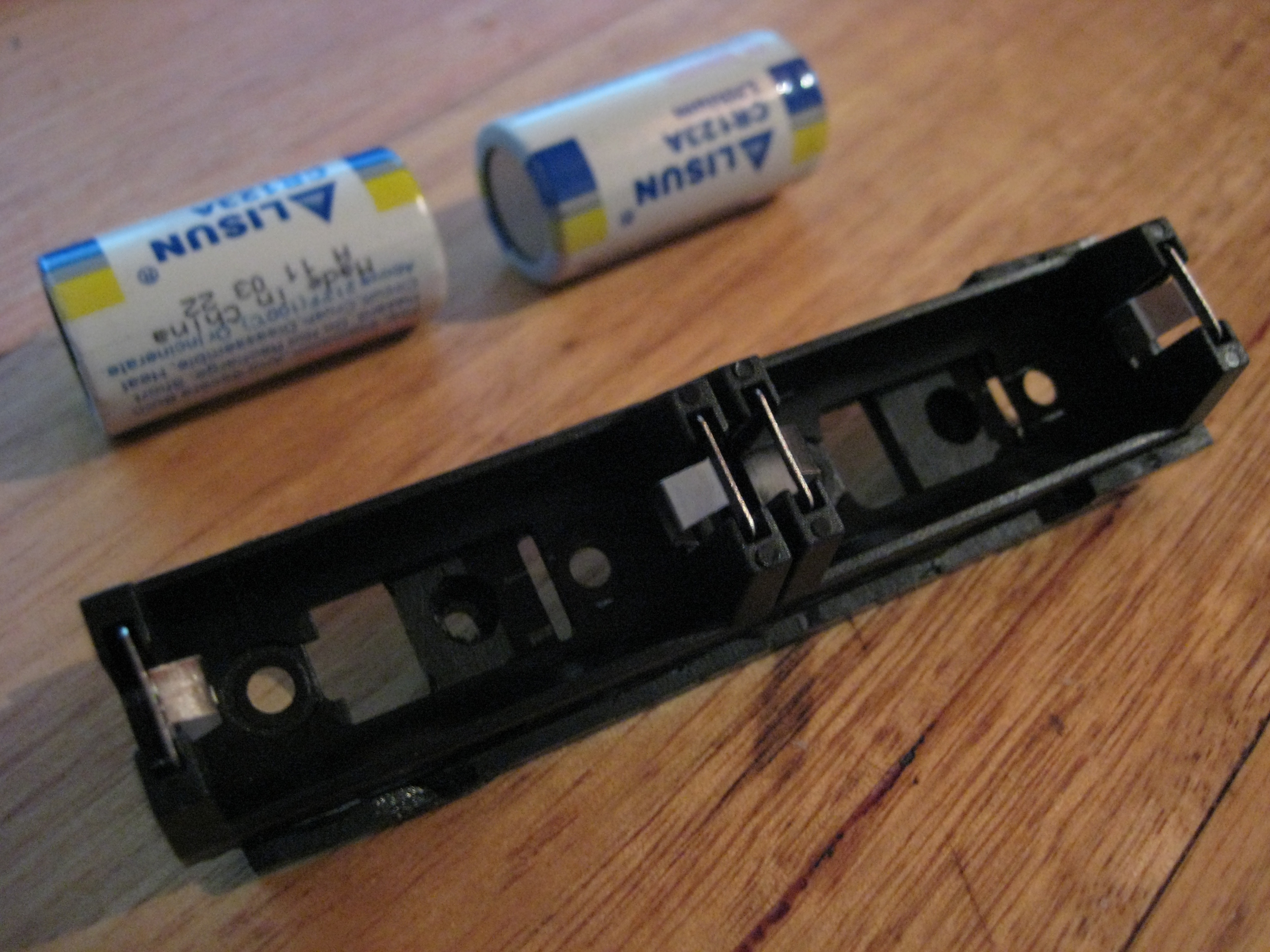

Top view of the modified battery holder, here you can see how the PCB-mount CR123A battery holders fit snugly inside the outer housing of the original battery holder. The new battery holders are secured using epoxy resin from behind.

5786714272_931fe4c5b6_o

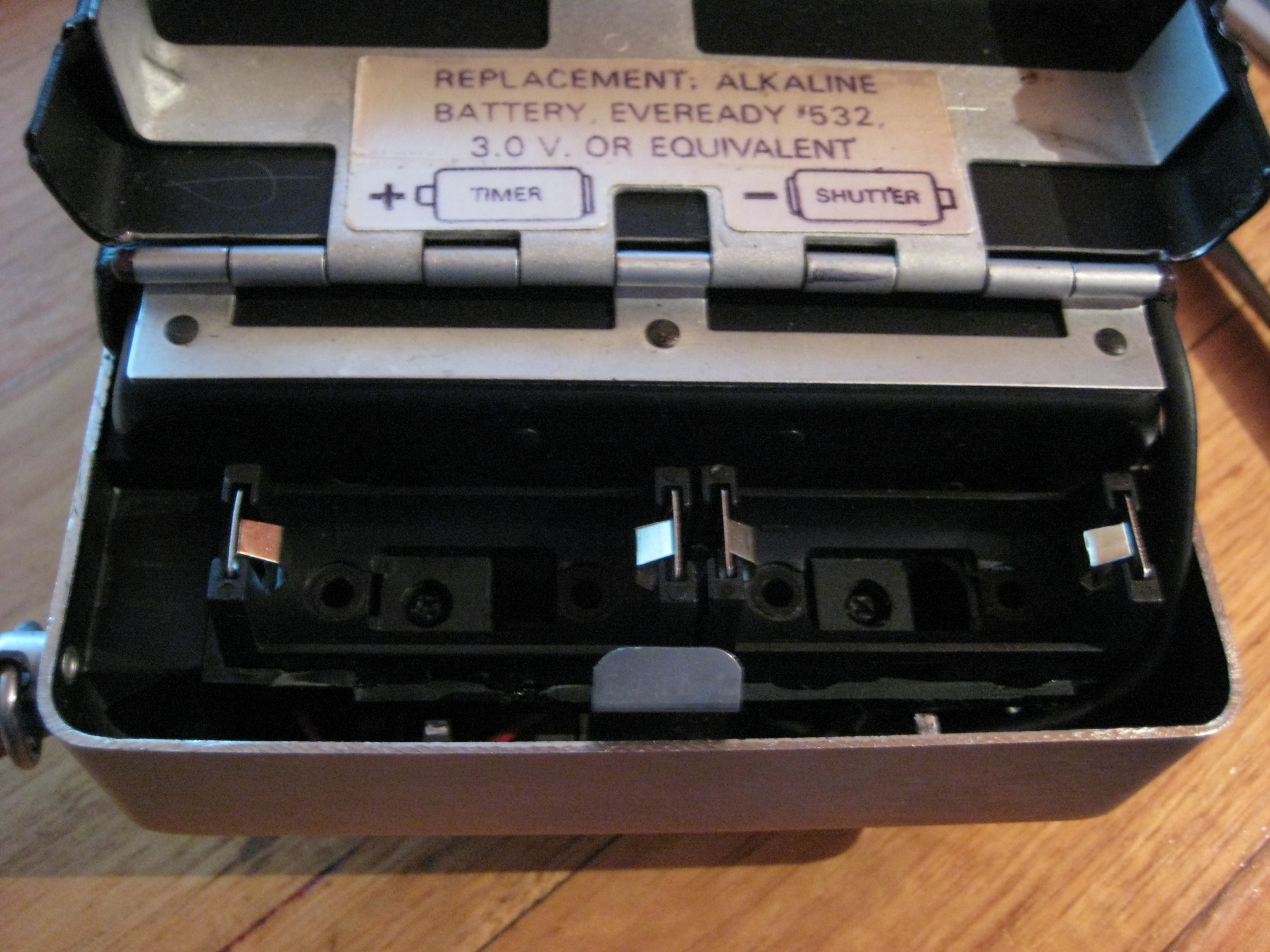

Holder screwed into camera using original screws and screw holes.

5786720502_b7d1b89708_o

Finished holder in camera with batteries, very neat looking solution.

5786170191_16b2ca0780_o
